CÁMARAS DE VIGILANCIA

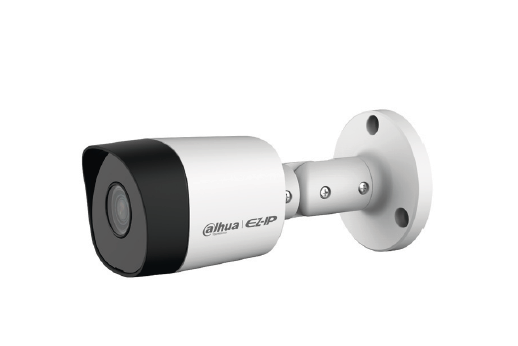

EZ-HAC-B2A21-F2

Max. 30fps@1080p
CVI/CVBS/AHD/TVI switchable
2.8 mm fixed lens
Max. IR length 20 m, Smart IR
IP67, DC12 V

EZ-HAC-B2A51-F2

Max. 25 fps@5MP (16:9 video output)
CVI/CVBS/AHD/TVI switchable
2.8 mm fixed lens
Max. IR length 20 m, Smart IR
IP67, DC12 V

*In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version

EZ-HAC-B4A51-Z

Max 25 fps@5MP (16:9 video output)
CVI/CVBS/AHD/TVI switchable
2.7 mm–12 mm motorized lens
Max. IR length 60 m, Smart IR
IP67, 12V DC


*In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version

EZ-HAC-D2A51-F2

Max 25 fps@5MP (16:9 video output)
CVI/CVBS/AHD/TVI switchable
2.8 mm fixed lens
Max. IR length 30 m, Smart IR
IP67, IK10, DC12V


*In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version

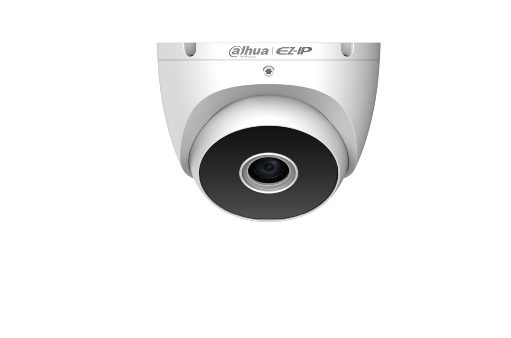

EZ-HAC-T2A21-F2

Max. 30fps@1080p
CVI/CVBS/AHD/TVI switchable
2.8 mm fixed lens
Max. IR length 20 m, Smart IR
IP67, DC12 V

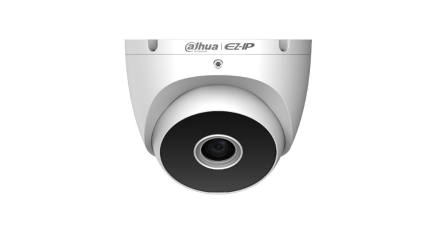

EZ-HAC-T2A51-F2

Max. 25 fps@5MP (16:9 video output)
CVI/CVBS/AHD/TVI switchable
2.8 mm fixed lens
Max. IR length 20 m, Smart IR
IP67, DC12V


*In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version

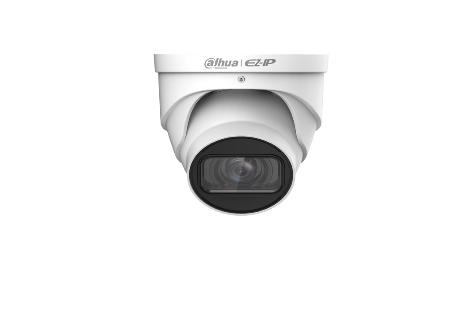

EZ-HAC-T4A51-Z

Max. 25 fps@5MP (16:9 video output)
CVI/CVBS/AHD/TVI switchable
2.7 mm–12 mm motorized lens
Max. IR length 40 m; Smart IR
IP67; DC12V


*In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version

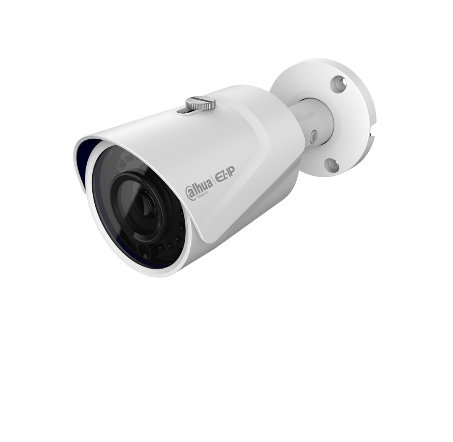

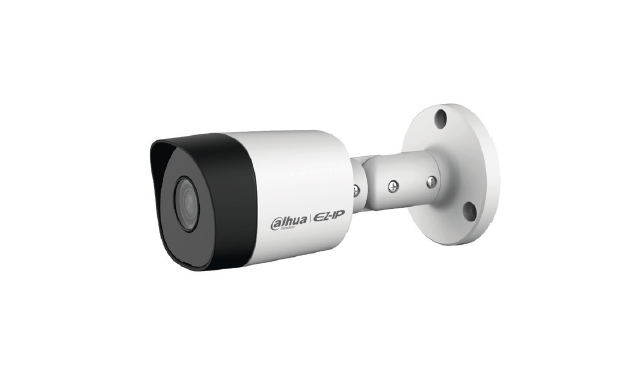

EZ-IPC-B2B20-F2

2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
Outputs max. 2MP (1920 × 1080) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in efficient IR illuminator, and the max. illumination distance
is 30 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments
Rotation mode, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access
12V DC/PoE power supply
IP67 protection

EZ-IPC-B4B40-F2

4MP, 1/3” CMOS image sensor, low illuminance, high image definition
Outputs 4MP (2560 × 1440) @25/30 fps, and supports max. 4MP (2688 × 1520) @20 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, max. IR distance: 30 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments
Image Rotation, 3D NR, HLC, BLC, digital watermarking, applicable to
various monitoring scenes
Abnormality detection: Motion detection, video tampering, network
disconnection, IP conflict, illegal access, voltage detection
12V DC/PoE power supply
IP67, protection

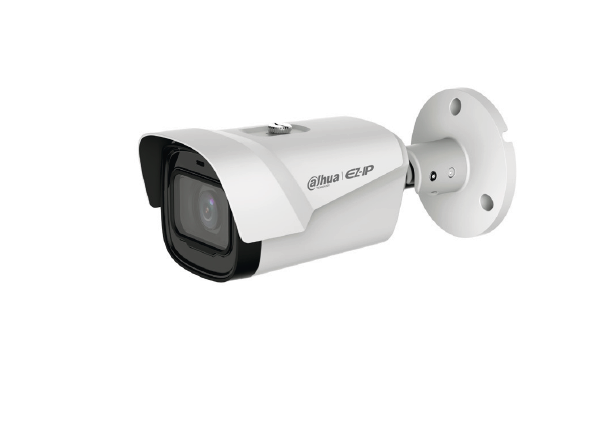

EZ-IPC-B4B40-ZS

4MP, 1/3” CMOS image sensor, low illuminance, high image definition
Outputs 4MP (2560 × 1440) @25/30 fps, and supports max. 4MP (2688 × 1520) @20 fps
H.265 codec, high compression rate, ultra-low bit rate. Built-in IR LED, max. IR distance: 50 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Image Rotation, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
Supports max. 256 GB SD card
12V DC/PoE power supply
IP67 protection

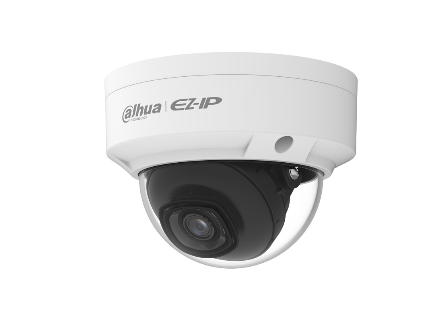

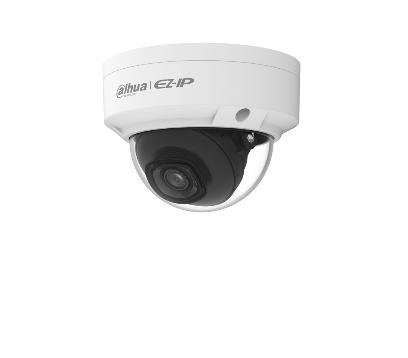

EZ-IPC-D2B20-F2

2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
Outputs max. 2MP (1920 × 1080) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in efficient IR illuminator, and the max. illumination distance is 30 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access
12V DC/PoE power supply
IP67, IK10 protection

EZ-IPC-D4B40-F2

4MP, 1/3″ CMOS image sensor, low illuminance, high image definition
Outputs 4MP (2560 × 1440) @25/30 fps, and supports max. 4MP (2688 × 1520) @20 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, max. IR distance: 30 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Image Rotation, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access, voltage detection
12 VDC/PoE power supply
IP67, IK10 protection

EZ-IPC-T2B20-F2

2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
Outputs max. 2MP (1920 × 1080) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in efficient IR illuminator, and the max. illumination distance is 30 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access
12V DC/PoE power supply
IP67 protection

EZ-IPC-T4B40-F2

4MP, 1/3” CMOS image sensor, low illuminance, high image definition
Outputs 4MP (2560 × 1440) @25/30 fps, and supports max. 4MP (2688 × 1520) @20 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, max. IR distance: 30 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Image Rotation, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access, voltage detection
12V DC/PoE power supply
IP67, protection

EZ-IPC-T4B40-ZS

4MP, 1/3” CMOS image sensor, low illuminance, high image definition
Outputs 4MP (2560 × 1440) @25/30 fps, and supports max. 4MP (2688 × 1520) @20 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, max. IR distance: 50 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Image Rotation, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
Supports max. 256 GB SD card
12V DC/PoE power supply
IP67 protection

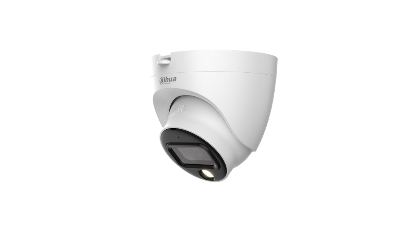

DH-HAC-HDW1209TLQ(-A)-LED

Max. 30 fps@1080p.
24/7 color imaging.
20 m illumination distance.
Super Adapt.
Built-in MIC (-A).
Quick-to-install eyeball saves installation time. · 3.6 mm fixed lens (2.8 mm optional).
CVI/CVBS/AHD/TVI switchable.
IP67, 12 VDC.

*The parameters and datasheets below can only be applied to1209-S2 series.

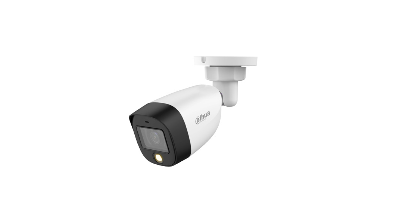

DH-HAC-HFW1209C(-A)-LED

Max. 30 fps@1080p
24/7 color imaging
20 m illumination distance.
Super Adapt.
Built-in MIC (-A)
3.6 mm fixed lens (2.8 mm optional)
CVI/CVBS/AHD/TVI switchable
IP67, 12 VDC

*The parameters and datasheets below can only be applied to1209-S2 series.

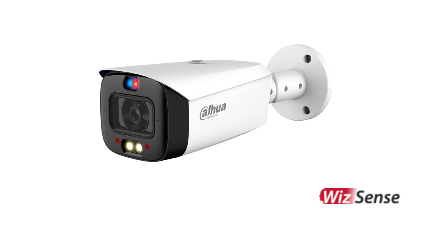

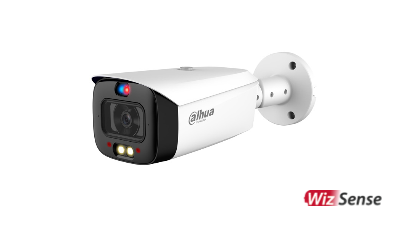

DH-IPC-HFW3449T1-AS-PV-S3

4MP 1/2.7″ CMOS image sensor, low luminance, and high definition image
Outputs max. 4 MP (2688 × 1520)@25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent monitoring: Intrusion, tripwire (the two function support the
classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker; support two-way talk. · 12 VDC/PoE power supply
IP67 protection
Sound and light alarm (red and blue lights)
SMD 3.0
One-click arming/disarming through alarm input

DH-IPC-HFW3849T1-AS-PV-S3

8MP 1/2.8″ CMOS image sensor, low luminance, and high definition image
Outputs max. 8 MP (3840 × 2160)@25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker; support two-way talk. · 12 VDC/PoE power supply
IP67 protection
Sound and light alarm (red and blue lights)
SMD 3.0
One-click arming/disarming through alarm input

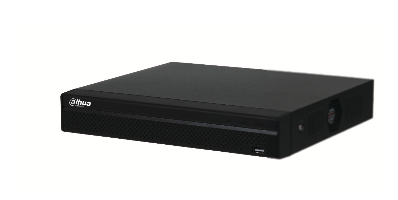

VIDEOGRABADORES

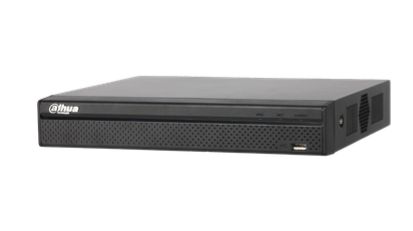

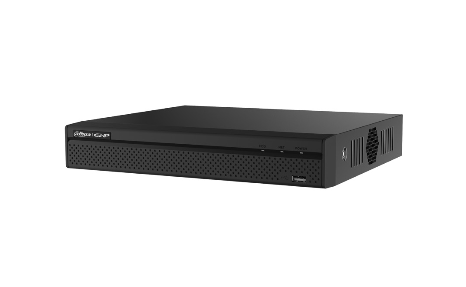

EZ-NVR1B04

New 4.0 user interface
P2P remote surveillance, video play on mobile device
4–ch@1080p (30 fps), self-adaptive decoding capability
Support for mainstream cameras of ONVIF and RTSP protocol
Smart H.265+/Smart H.264+
VGA/HDMI simultaneous video output, maximum resolution of HDMI is 1080p
Remote configuration and management of IPCs, such as setting parameters, acquiring information and upgrading IPCs of the same model in batches
DHCP (Dynamic Host Configuration Protocol), HTTP (Hypertext Transfer Protocol), NTP (Network Time Protocol) and DDNS (Dynamic Domain Name System)

EZ-NVR1B08

New 4.0 user interface
P2P remote surveillance, video play on mobile device
4–ch@1080p (30 fps), self-adaptive decoding capability
Support for mainstream cameras of ONVIF and RTSP protocol
Smart H.265+/Smart H.264+
VGA/HDMI simultaneous video output, maximum resolution of HDMI is 1080p
Remote configuration and management of IPCs, such as setting parameters, acquiring information and upgrading IPCs of the same model in batches
DHCP (Dynamic Host Configuration Protocol), HTTP (Hypertext Transfer Protocol), NTP (Network Time Protocol) and DDNS (Dynamic Domain Name System)

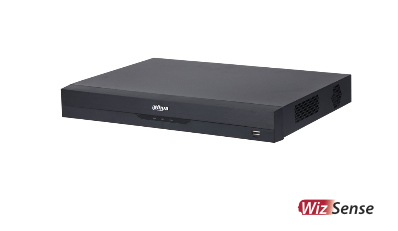

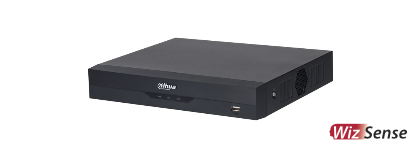

EZ-XVR1B04-I

H.265+/H.265 dual-stream video compression
Supports Full channel AI-Coding
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 5 channels IP camera inputs, each channel up to 2 MP; Max 20 Mbps incoming bandwidth
Up to 4 channels video stream (analog channel) SMD Plus

EZ-XVR1B04H-I

H.265+/H.265 dual-stream video compression
Supports Full-channel AI-Coding
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 6 channels IP camera inputs, each channel up to 6MP; Max 32 Mbps incoming bandwidth
Up to 4 channels video stream (analog channel) SMD Plus

EZ-XVR1B08-I

H.265+/H.265 dual-stream video compression
Supports Full channel AI-Coding
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 10 channels IP camera inputs, each channel up to 6MP; Max 40 Mbps incoming bandwidth
Up to 4 channels video stream (analog channel) SMD Plus

EZ-XVR1B08H-I

H.265+/H.265 dual-stream video compression
Supports Full-channel AI-Coding
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 12 channels IP camera inputs, each channel up to 6 MP; Max 64 Mbps incoming bandwidth
Up to 8 channels video stream (analog channel) SMD Plus

EZ-XVR1B16-I

H.265+/H.265 dual-stream video compression
Supports Full-channel AI-Coding
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 18 channels IP camera inputs, each channel up to 6MP; Max 64 Mbps Incoming Bandwidth
Long transmission distance over coax cable
Up to 8 channels video stream (analog channel) SMD Plus

DH-XVR4104HS-I

H.265+/H.265 dual-stream video compression
Supports Full-channel AI-Coding
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 5 channels IP camera inputs, each channel up to 2MP; Max 32 Mbps incoming bandwidth
Up to 4 channels video stream (analog channel) SMD Plus

DH-XVR4108HS-I

H.265+/H.265 dual-stream video compression
Supports Full-channel AI-Coding
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 10 channels IP camera inputs, each channel up to 6MP; Max
32 Mbps incoming bandwidth
Up to 8 channels video stream (analog channel) SMD Plus

DH-XVR4116HS-I

H.265+/H.265 video compression
Supports Full-channel AI-Coding
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 18 channels IP camera inputs, each channel up to 6MP; Max 64 Mbps Incoming Bandwidth
Long transmission distance over coax cable
Up to 8 channels video stream (analog channel) SMD Plus

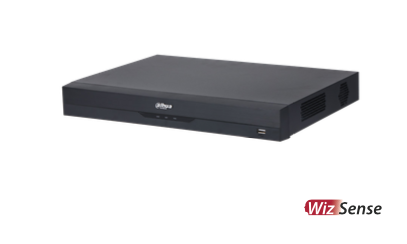

DH-XVR4232AN-I

H.265+/H.265 dual-stream video compression
Supports 8-channel AI-Coding
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 16 channels IP camera inputs, each channel up to 6MP; Max 128 Mbps incoming bandwidth
Up to 16 channels video stream (analog channel) SMD Plus
Long transmission distance over coax cable

DH-XVR5116HS-I3

H.265+/H.265 dual-stream video compression
Supports Full-channel AI Coding
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 24 channels IP camera inputs, each channel up to 6MP; Max 128 Mbps incoming bandwidth
Up to 4 channels video stream (analog channel) Perimeter Protection
Up to 16 channels video stream (analog channel) SMD Plus
Up to 2 channels video stream (analog channel) human face recognition
IoT & POS functionalities

DH-XVR5232AN-I3

H.265+/H.265 dual-stream video compression
Supports 16-channel AI-Coding
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 32 channels IP camera inputs, each channel up to 6MP; Max 128 Mbps incoming bandwidth
Up to 4 channels video stream (analog channel) Perimeter Protection
Up to 16 channels video stream (analog channel) SMD Plus
Up to 2 channels video stream (analog channel) human face recognition
IoT & POS functionalities

DHI-NVR2104/2108HS-4KS2

Smart H.265+/Smart H.264+/H.265/H.264
Max 80Mbps incoming bandwidth
Up to 8Mp resolution preview&playback
Up to 1ch@8MP/4ch@1080P decoding
HDMI/VGA simultaneous video output

DHI-NVR2116HS-4KS2

Smart H.265+/Smart H.264+/H.265/H.264
Max 80Mbps incoming bandwidth
Up to 8Mp resolution preview&playback
Up to 1ch@8MP/4ch@1080P decoding
HDMI/VGA simultaneous video output

DHI-NVR2116HS-I

New 4.0 user interface
Remote surveillance, live view and video play on mobile phone App
Max. decoding capability: 6 × 1080p@30 fps. Supports adaptive decoding
Supports mainstream cameras of ONVIF and RTSP protocols
H.264/.H265/Smart H.264+/Smart H.265+/MJPEG, H.265 auto switch
1 VGA/1 HDMI simultaneous video output by default, the maximum resolution of HDMI is 4K; and non-simultaneous video output is also supported, the maximum resolution is 1080p
1-channel face detection and recognition (AI by NVR); or 2-channel perimeter detection (AI by NVR); or 4-channel SMD (AI by NVR); up to 10 face databases and 5,000 face images
Security baseline 2.1

DHI-NVR4116HS-4KS2/L

New 4.0 user interface, Security baseline 2.1
H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch
Max. decoding capability: 8 × 1080p@30 fps. Supports adaptive
decoding
Supports mainstream cameras of ONVIF and RTSP protocols
P2P remote surveillance, video play on mobile device
VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K
AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD
Supports remote configuration and management of IPC, such as set ting parameters, getting information, and upgrading IPC of the same model in batches

DHI-NVR5208/5216/5232-4KS2

8/16/32-channel IP video access
Smart H.265+/Smart H.264+/H.265/H.264/MJPEG; H.265 auto switch
Max 320 Mbps incoming bandwidth
Up to 24MP resolution for live view and playback
1-channel fisheye dewarping (AI by NVR)
AI by Camera: Perimeter protection; face detection and recognition; SMD Plus; video metadata; ANPR; people counting; stereo analysis; crowd distribution; heat map

Leave a Reply
